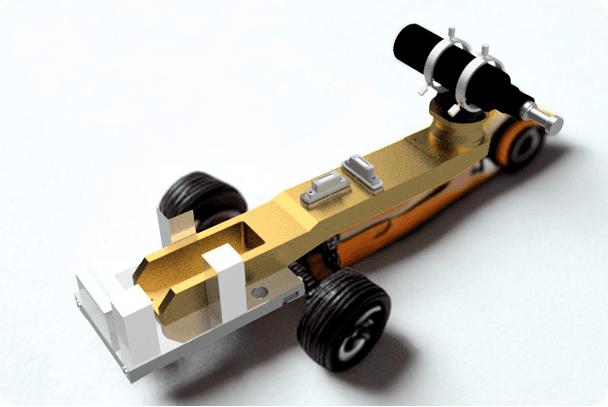

Totem Tray Harmonization Tool – Indigenized Runway Alignment System
Jetsys Defence introduces a fully indigenized Totem Tray Harmonization Tool, engineered for precise runway light alignment and optical harmonization. Designed for defence and commercial aviation, it enables technicians to accurately align runway approach lights, PAPI, VASI, touchdown lighting, and other AGL systems without heavy setup, external targets, or weather dependencies.
This system improves operational readiness, reduces maintenance time, and provides superior accuracy over conventional mechanical alignment procedures.
What is a Totem Tray Harmonization Tool?
A Totem Tray Harmonization Tool is a precision-engineered optical alignment instrument used to set the beam angle and convergence of runway lighting equipment. It projects a calibrated optical reference that technicians use to adjust light trays to exact ICAO-defined angles.
Why is Harmonization Required?
- Ensures every runway light emits a correct beam height and axis
- Critical for night operations and low-visibility landings
- Prevents uneven illumination zones that affect pilot visibility
- Helps airports maintain international compliance
Key Features – Totem Tray Harmonization Tool
- Collimated reference for stable beam datum (azimuth & elevation)
- Fine-pitch micrometer adjusters for sub-degree tuning (±0.1° class)
- Dual-axis alignment with clear sighting reticle/telescope
- Repeatable tray positioning for uniform runway light patterns
- Works with LED, halogen, inset, elevated, PAPI/VASI fixtures
- Aircraft-grade aluminium chassis; weather-resistant gasketing
- Rechargeable battery pack or external 12 V input
- Shock-protected optics and hard carry case
- One-person setup; no long-range targets or aircraft levelling
- Tool-less field adjustments; quick clamp/lock interfaces
- Non-intrusive to flight ops; minimal closure time
- Alignment aides mapped to ICAO-style photometric aims
- Includes calibration sheet, user checklist, and maintenance log
Technical Specifications – Totem Tray Harmonization Tool
| Parameter | Specification |
|---|---|
| Construction | Aircraft-grade aluminium body |
| Optical System | Collimated optical emitter with calibrated reference |
| Viewing Method | Telescope / sighting scope alignment |
| Beam Alignment Range | Horizontal & vertical adjustment (azimuth + elevation) |
| Accuracy | ±0.1° or better (field dependent) |
| Power Source | Rechargeable battery pack / external 12V |
| Operating Temperature | –20°C to +55°C |
| Handling | Single-person portable deployment |
| Compatible Lights | PAPI, VASI, edge lights, approach lights, inset lights |
| Environmental Use | Works indoors (hangar) or outdoors |
| Certification Support | ICAO & military precision guidance requirements (compliance-oriented) |
Applications of Totem Tray Harmonization Tool
- Routine harmonization of runway/taxiway edge lights
- Touchdown zone, centerline, approach lighting alignment
- New AGL projects: rapid tray setup and verification
- Post-repair/post-upgrade optical re-aiming
- Alignment checks for safety audits and AMC contracts
- Restoration of beam profile after ground works or resurfacing
- Expeditionary strips and permanent bases; quick field calibration
- Night/low-visibility readiness assurance
- Fixture manufacturing QA
- MRO bench alignment validation
- Technician training for optical alignment best practices
Benefits of Jetsys Defence Harmonization System
Technicians align lighting trays without removing fixtures or installing ground targets.
Optical referencing maintains identical beam angles across an entire runway.
No foreign dependency and long-term spare availability through Jetsys Defence.
Rapid alignment helps avoid delays in flight operations, especially in busy airports.
Why Choose Jetsys Defence for Totem Tray Harmonization Tool
- Engineered for Precise Aircraft Weapon Alignment
Jetsys Defence designs the Totem Tray Harmonization Tool to accurately align aircraft gun sights, targeting pods, and weapon reference points—ensuring firing systems are harmonized with the aircraft’s optical and electronic line of sight. - Built for Fighter, Trainer & Transport Platforms
Supports harmonization on military aircraft, enabling rapid, repeatable and error-free calibration after maintenance or weapon system replacement. - High Mechanical Accuracy & Rigid Construction
Aerospace-grade alloys and precision machining ensure stable reference geometry and long service life under airfield conditions. - Fast Setup for Flight-Line Operations
Lightweight, portable and easy to position under aircraft pylons, enabling harmonization directly on the apron or hangar floor.
- Repeatable & Reliable Measurement
Ensures consistent alignment results across sorties, improving mission accuracy and reducing targeting deviation. - Compatible with Standard Ground Equipment
Interfaces with weapon rails, pylons, launcher assemblies and pods—ideal for MRO tasks and routine checks. - Made & Supported in India
Local manufacturing, spares, calibration help and technician training—no dependency on foreign tooling. - Trusted by Defence Maintenance Units
Used in aviation MRO units, airbases and defence workshops for harmonization checks and pre-flight readiness.
