Shallow Base – Runway Spares by Jetsys Defence

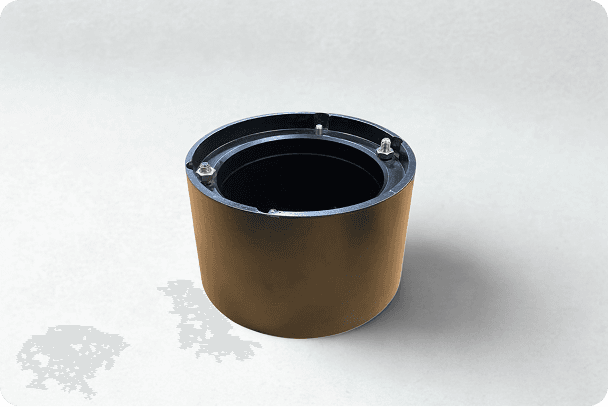

The Shallow Base from Jetsys Defence is a robust mounting solution for inset airfield lights on runways, taxiways, and aprons. Engineered for fast installation and long service life, our Shallow Base units support flexible or rigid pavements, streamline cable management, and improve thermal dissipation to help extend fixture life.
Features at a Glance
Precision Machining
Flatness and bolt-pattern accuracy ensure proper fixture seating and long-term watertightness.
Serviceable Design
Accessible fasteners and replaceable glands reduce maintenance time on the flight line.Configurable Cable Paths
Choose bottom or glanded side entry to suit pit locations and secondary cabling runs.
Applications of Shallow Base
Runway Lighting Fixtures
Used to mount runway edge lights, centreline lights, touchdown zone lights, and approach lights where deep foundations are not possible.Taxiway & Apron Lighting
Supports installation of taxiway guidance signs, elevated/taxiway lights, and apron floodlighting on concrete or paved surfaces.Underground Cable Routing & Junction Housing
Acts as an enclosure for primary and secondary lighting cables, protecting joints from moisture, debris, and mechanical stress.Retrofit or Upgrade of Existing Airfields
Ideal for airports where trenching is restricted due to pavement structure, utilities, or older slab construction.
Military & Temporary Airstrips
Perfect for rapid-deployment strips and forward operating bases where shallow civil work enables fast setup.Helipad Lighting Systems
Used to mount helipad edge lights and approach aids with minimal excavation and stable electrical interfaces.Solar or LED-Based Airfield Lights
Supports modern low-profile LED and solar lights that require compact underground housings without deep foundation pits.Industrial, Marine & Port Lighting
Used in ports, docks, refineries, and industrial yards for surface-mounted obstruction and pathway lighting.Areas with Rock, High Water Table or Soil Limits
Preferred where excavation is difficult or unsafe due to rock beds, high water levels, or reinforced concrete layers.
Technical Specifications
Representative data shown; dimensions/ratings may vary by model. Custom sizes and accessories available.
| Parameter | Specification |
|---|---|
| Nominal Sizes | 8″ and 12″ Shallow Base units (other diameters on request) |
| Outside Diameter (typ.) | 8″ ≈ 220 mm; 12″ ≈ 320 mm |
| Depth (typ.) | ~150 mm shallow depth profile |
| Body Material | High-strength aluminium alloy (forged/cast), anodised or coated |
| Hardware | Stainless-steel screws, washers, threaded sleeves/inserts |
| Cable Entry | Bottom entry (standard); optional single/dual side entries with glands |
| Sealing | Gasketed dry-base option between base and fixture; epoxy set in core |
| Finish | Industrial two-pack coating / anodised finish (project-specific colours) |
| Temperature Range | –55 °C to +55 °C (storage up to +70 °C) |
| Altitude | Up to ~3,000 m |
| Loading/Environment | Designed for airfield pavement mechanical loads and jet-blast environment |
| Compatibility | 8″/12″ inset light footprints (model-dependent) |
| Standards Alignment | FAA AC 150/5345-42 (as applicable), IEC 61822/61827 mechanical/env. |
| Accessories | Mounting jigs, sealing gaskets, gland kits, alignment plates, concrete collars |
How We Support Your Project
Engineering & Submittals
Data sheets, installation drawings, and method statements aligned with your project specification and airport standards.
Logistics & Kitting
Crated Shallow Base units with gaskets, glands, and hardware—ready for night-time possession windows and fast field deployment.After-Sales
Spares and hardware kits to keep inventories lean and lighting assets serviceable throughout their lifecycle.
Why Choose Jetsys Defence Shallow Base Units
Durable, Airfield-Ready Construction
Forged/cast aerospace-grade aluminium body with stainless-steel hardware resists corrosion, impact, and cyclic loading from aircraft operations.Fast, Fail-Safe Installation
Optimised for core-drilled epoxy set or precast block installs; optional bottom or side cable entries and sealed glands simplify on-site work.
Thermal & Moisture Control
Efficient heat path away from the light fitting plus dry-base and gasket options help maintain IP integrity and component longevity.Standards-Aligned Design
Designed in line with common airfield mechanical and environmental requirements (e.g., FAA AC 150/5345-42 / related guidance and IEC 61822/61827 considerations).
*Final compliance depends on selected configuration and project specification.
