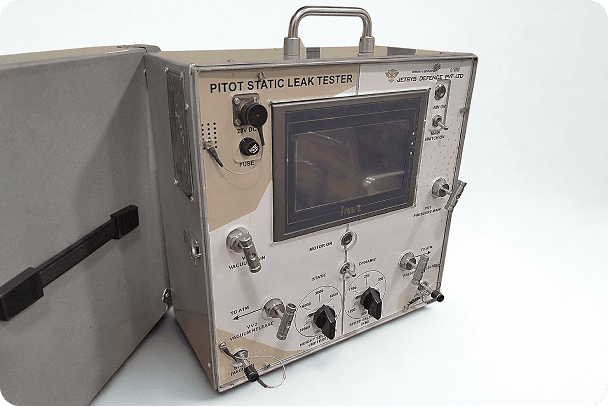

Automated Pitot Leak Tester — Precision Air Data Integrity by Jetsys Defence
The Automated Pitot Leak Tester from Jetsys Defence is a compact, aviation-grade solution engineered to verify pitot and static system integrity with fast, automated leak checks and RVSM-ready accuracy. Built for MROs, line maintenance, and flight test teams, it delivers reliable results with minimal operator input—reducing turnaround time while elevating safety and compliance
Product Overview
Designed around robust pressure control and smart automation, our tester simulates flight conditions to validate pitot and static lines, sensors, and associated instruments. Automated sequences, real-time readings, and safe pressure trapping make it ideal for ramp and hangar operations.
Highlights at a Glance
- Automated leak test profiles with single-button operation
- RVSM-ready accuracy for confident compliance
- Remote/cockpit operation option for solo workflows
- Fast stabilization & rate control for repeatable results
- Power-loss safety with trapped-pressure protection
- Low maintenance design, annual calibration ready
Key Features of Automated Pitot Leak Tester
Automated Control & Profiles
Pre-loaded test profiles guide operators through pitot and static leak checks with consistent ramp rates and pass/fail thresholds for repeatable results.Real-Time Monitoring & Data Capture
High-resolution sensors provide live pressure, altitude, airspeed, and rate readings—ideal for audit trails, QA records, and documentation.
Safety & Protection
Emergency vent-to-ground, automatic exit from leak mode on large leaks, and pressure-trap on power loss protect sensitive aircraft instrumentation.Portable, Field-Ready Design
Lightweight enclosure, integrated pumps, and aviation quick-connect fittings enable rapid setup in hangar or ramp environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Static Port Pressure (Ps) | 0.1–42 inHg; resolution 0.001 inHg; accuracy ±0.002 inHg |
| Altitude Function | –4,000 to 60,000 ft; res. 1 ft; accuracy ±2 ft @ 0 ft / ±6 ft @ 35,000 ft / ±12 ft @ 50,000 ft |
| Climb/Descent Rate | 0 to ±25,000 ft/min; res. 1 ft/min; accuracy ±1% of rate |
| Pitot Output Pressure (Pt/Qc) | 0.1–60 inHg; res. 0.001 inHg; accuracy ±0.003 inHg |
| Airspeed Function | 0–650 kt; res. 0.1 kt; accuracy ±0.5 kt @ 50 kt / ±0.25 kt @ 100 kt / ±0.05 kt @ 650 kt |
| Mach Function | 0.00–3.00 M; res. 0.001 M; accuracy ±0.001 above 0.20 M |
| Rate Control (Airspeed) | 0–500 kt/min programmable |
| Automation & Profiles | Pre-configured leak and RVSM checks; single-button sequences |
| Safety Functions | Auto exit on large leak, pressure trap on power loss, manual vent-to-ground |
| Interfaces | Local panel; optional remote/cockpit pendant; RS-232 / IEEE-488 (configurable) |
| Power Requirement | 90–260 VAC, 47–440 Hz; ≤150 VA |
| Operating Environment | 0 to 50 °C; 5–100% RH (non-condensing) |
| Calibration | Annual calibration recommended |
| Compliance Readiness | Supports RVSM-level accuracy workflows |
| Enclosure | Portable, lightweight, maintenance-friendly design |
Note: Specs shown are indicative of a typical Jetsys Defence configuration. Final ranges, accuracies, and interfaces can be tuned per program requirements.
Applications of Automated Pitot Leak Tester
Line & Base Maintenance
Quick pitot/static integrity checks after component replacement or troubleshooting.Avionics & ADC Validation
Supports altimeters, airspeed/Mach indicators, VSI, transponders, and ADS-B calibration workflows.
Flight Test & R&D
Stable, high-resolution control for precise characterization, testing, and documentation.Training Labs
Intuitive UI and guided profiles reduce learning curve and operator error for educational environments.
Automated Pitot Leak Tester Kit
What’s Included (Typical)
- Main unit with integrated pumps and pressure controllers
- Remote operation pendant for cockpit use (optional)
- Quick-connect pitot/static hoses and adaptors set
- Power cable, calibration certificate, and user guide
- Protective case for transport and storage
Optional Add-Ons
- Extended hose/adaptor sets by aircraft family
- Data export and report templates for maintenance records
- Custom profiles for fleet-specific workflows
Automated Pitot Leak Tester Price
Pricing depends on configuration (channels, interfaces, kit contents, calibration bundle). Request a quote from Jetsys Defence to receive the best Automated Pitot Leak Tester price tailored to your fleet and maintenance environment.
Why Choose Jetsys Defence for Automated Pitot Leak Tester
Ultra-Precise Digital Pressure Control
High-accuracy sensors and micro-controlled regulators simulate altitude and airspeed with extremely fine resolution—ideal for sensitive Pitot-Static and Air Data systems.Fast Leak Detection & Stabilization
Automated pressure stabilization, leak-rate calculation, and digital readouts reduce test time, eliminate human error, and improve pre-flight/post-maintenance reliability.Safe for Modern Avionics & ADIRS Systems
Over-pressure protection, controlled ramp-up/down curves, internal relief valves, and auto-shutoff safeguard static ports, pitot probes, and air data computers.
Rugged, Flight-Line Ready Hardware
Corrosion-resistant casing, shock-proof electronics, quick-connect hoses, and a dust-sealed control panel ensure reliability on runways, hangars, and military bases.Easy Touch-Screen Operation
Intuitive interface with test presets, stored profiles, and on-screen pass/fail results—reducing technician effort and training time.Optional PC/Tablet Connectivity
USB/Wi-Fi data download, calibration logs, and digital test reports enhance traceability and maintenance record quality.Customizable for Any Aircraft Fleet
Configurable pressure ranges, hose/adaptor kits, and dual-channel pitot-static capability for civil and military platforms.
