Protractor Unit for DAU Vane Angles – Precision Aircraft Tooling by Jetsys Defence
The Jetsys Defence Protractor Unit for DAU Vane Angles is a high-accuracy measuring tool engineered for vane rigging, alignment, and calibration tasks. Built for MRO, line maintenance, and defence applications, this vane protractor aviation tooling provides repeatable, traceable measurements that help technicians meet strict aircraft OEM tolerances.
Product Overview

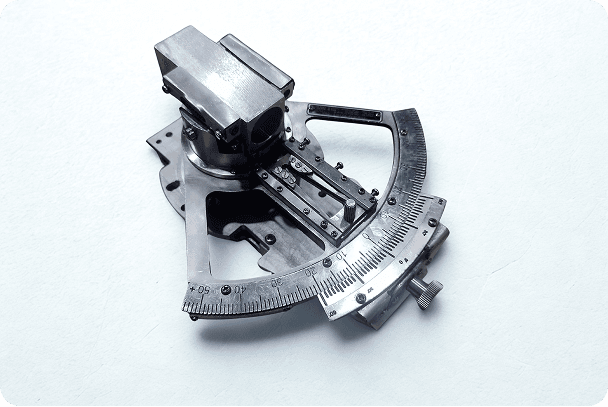

Our Protractor Unit for DAU Vane Angles offers precise angle measurement for stall/alpha vanes, DAU vane sensors, and variable vane assemblies. The rugged body, stable mounting hardware, and positive-lock indexing ensure dependable use on the ramp and in the shop.
- Primary use –Measurement and setting of DAU vane angles.
- Secondary use –Control surface and sensor alignment where angle verification is required.
- Available forms –Digital readout or high-visibility analog dial, both offering fine resolution.
Key Features of Protractor Unit for DAU Vane Angles
- High accuracy & resolution –Fine-grade encoder or dial ensures precise angle sensing for tight vane tolerances.
- Stable mounting –Aircraft-safe clamps with optional suction or magnetic bases maintain alignment without damaging painted surfaces.
- Fast rigging workflow –Zero-set, hold, and relative-angle modes speed up calibration and reduce rework time.
- Robust aviation build –Impact-resistant housing, Skydrol-resistant finishes, and sealed bearings ensure long service life in demanding GSE environments.
- Documentation & traceability –Optional factory calibration certificate and maintenance checklist support airworthiness compliance and record-keeping.
Technical Specifications
Values are representative; Jetsys Defence can tailor specifications to your aircraft and DAU system requirements.
| Parameter | Specification |
|---|---|
| Measurement Range | ±90° (full span) |
| Resolution | Digital: 0.01° · Analog: 0.5° per division |
| Accuracy | ±0.05° (digital) · ±0.25° (analog) |
| Repeatability | ≤ ±0.02° (digital mode) |
| Zero / Offset | Absolute zero & relative offset modes |
| Display | Backlit LCD (digital) / High-contrast analog dial |
| Mounting Options | Non-marring clamp kit, suction base, magnetic base (aircraft-safe) |
| Probe / Adapter Set | DAU vane adapter shoes, alignment pins, spacer shims |
| Data Output (optional) | Serial data port for logging (digital model) |
| Power (digital) | 2×AA or rechargeable pack, auto-sleep |
| Ingress Protection | IP54 equivalent (shop/ramp use) |
| Operating Temp. | -20°C to +55°C |
| Calibration | Factory calibration, field verification kit (optional) |
| Finish | Corrosion & fluid-resistant coating (Skydrol-resistant) |
| Kit Case | Shock-proof transit case with foam inlays |
Benefits of Protractor Unit for DAU Vane Angles
- Measurement confidence – Tight accuracy and repeatability reduce mis-rig risk.
- Faster turnarounds – Zero/relative modes and stable mounting cut setup time.
- Fleet flexibility – Interchangeable DAU vane adapters cover multiple platforms.
- Lower lifecycle cost – Durable housing and aircraft-safe interfaces minimize wear.
- Record readiness – Calibration records support compliance and quality audits.
Applications of Protractor Unit for DAU Vane Angles
- DAU vane rigging – Verification and alignment of vane angles.
- Stall/alpha vane checks – Useful during installation or troubleshooting.
- Variable vane alignment – Serves as reference for guide/stator vane setups.
- Maintenance operations – Ideal for line maintenance, MRO, and defence depots.
What’s in the Box (Typical Kit)
- Protractor unit – Available in digital or analog variants.
- DAU vane adapter set – Shoes, pins, and shims for multiple vane models.
- Mounting system – Non-marring clamp plus optional suction/magnetic base.
- Verification plate – Allows quick field reference checks.
- Transit case & docs – User guide and calibration certificate (if ordered).
Why Jetsys Defence for Protractor Unit for DAU Vane Angles?
- Aviation-grade tooling –Engineered for defence and commercial aircraft fleets.
- Proven durability –Fluid-resistant coatings and rugged hardware extend service life in harsh ramp environments.
- Custom adapters & kitting –Tailored setups for your DAU models and fleet mix.
- End-to-end support –Assistance with selection, calibration, documentation, and after-sales service.
