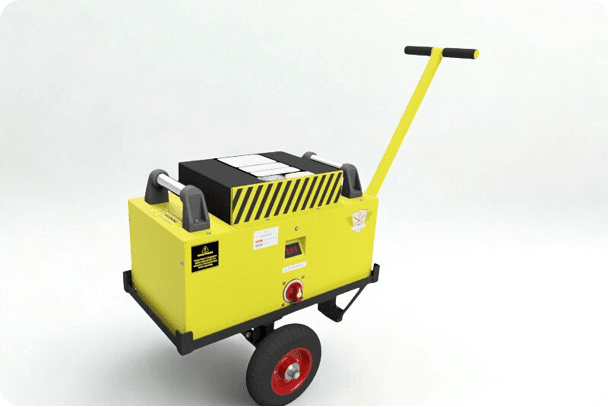

Portable Engine Starting Trolley – High-Performance Aircraft Start-Up by Jetsys Defence

Engineered for ramp reliability, the Portable Engine Starting Trolley from Jetsys Defence delivers safe, high-current DC starts for helicopters, turboprops, and small jets. Compact, field-ready, and serviceable across India, it’s the ideal choice when you need dependable starts, rapid recharge, and robust after-sales support.



Picture of the author


Model Options of Hydraullic Servicing Trolley

  • PESU-28 (Helicopter / Light Turbine)

    28 VDC supply with high burst current, compact towable trolley, wide-range AC charger, and optional cold-weather kit.

  • PESU-24 (Turboprop / GA / Piston)

    24 VDC lightweight pack with rapid recharge and field-swap battery option for remote airstrips.

  • Advanced Li Pack

    LiFePO₄ technology for superior power-to-weight ratio, faster turnaround, and extended cycle life.


Key Features of Portable Engine Starting Trolley

  • High Current Delivery

    Provides reliable peak and burst current to support APU and turbine inrush demands for confident starts in all conditions.

  • Clean, Stable Voltage

    Tightly regulated 24 VDC or 28.5 VDC output with low internal impedance to minimise voltage sag during crank.

  • Tough, Flight-Line Ready

    Impact-resistant enclosure, corrosion-proof hardware, protected connectors, and guarded master isolator for harsh apron conditions.

  • Smart Charging & Monitoring

    Integrated multi-stage charger with SOC/voltage display, event/status indicators, and optional data logging for fleet records.

  • Flexible Energy Chemistries

    Available with sealed lead-acid (SLA/AGM) for value or LiFePO₄ for higher power-to-weight ratio and faster recharge times.


Portable Engine Starting Trolley Maintenance (Best Practices)

  • Daily Checks

    Visual inspection, connector cleanliness, and SOC/voltage check before dispatch.

  • Weekly Tasks

    Lead integrity inspection, charger self-test, and logging of start events for traceability.

  • Annual Service

    Full electrical inspection, calibrated load test, meter calibration, and battery replacement plan based on cycles/calendar.

  • Monthly / Quarterly

    Capacity test (battery health), settings or firmware review (where applicable).

  • Fleet Support

    Jetsys Defence provides AMCs, calibration services, and battery refurbishment programs to maximise uptime.


Technical Specifications (Representative)

Representative values for portable aircraft starting power units. Jetsys Defence offers customized configurations to suit engine type, start profile, and ambient conditions.

CategorySpecification
Output Voltage24 VDC or 28.5 VDC (model dependent)
Peak/Burst CurrentUp to 1000–1500 A (4–10 s typical); higher on request
Continuous Crank400–600 A (duty-limited by thermal profile)
Battery Capacity50–100 Ah (SLA/AGM) or 40–80 Ah (LiFePO4) equivalent energy
ChargerIntegrated multi-stage; 90–264 VAC, 50/60 Hz auto-range
Recharge Time~3–6 hours from full depletion (model/battery dependent)
ProtectionReverse-polarity, short-circuit, over-temp, over-voltage, fuse/CB protection, master isolator
InstrumentationDigital voltmeter/SOC, status LEDs, hour/event counters (options)
Harness/LeadHeavy-duty aircraft lead with start plug; optional NATO plug/adapters
EnclosurePowder-coated or stainless steel; IP-rated panels; impact bumpers
MobilityRemovable trolley with castors & telescopic handle; skid/tow-handle options
Operating Temperature−30 °C to +55 °C (battery chemistry dependent)
Compliance (typ.)Built to aviation GSE best practice; environmental testing options available
Dimensions / WeightCompact footprint (~400×300×300 mm module); ~20–40 kg module plus trolley


Applications of Portable Engine Starting Trolley

  • Flight-Line Starts

    Quick, repeatable starts for helicopters, turboprops, and small business jets.

  • Hangar Maintenance

    Stable DC supply for avionics checks and ground runs (within duty limits).

  • Remote / Field Ops

    Portable, rugged design for dispersed operations and forward bases.


Portable Engine Starting Trolley Maintenance (Best Practices)

  • Daily

    Visual checks, connector cleanliness, SOC/voltage check.

  • Weekly

    Lead integrity inspection, charger self-test, and log start events.

  • Monthly / Quarterly

    Capacity test (battery health) and firmware/settings review (if applicable).

  • Annually

    Full electrical inspection, load test, meter calibration, and battery replacement plan by cycles/calendar.

  • Support

    Jetsys Defence provides AMCs, calibration, and battery refurbishment programs to maximise uptime.


Portable Engine Starting Trolley Price & Sale Information

For transparent Portable Engine Starting Trolley price options and current sale bundles (spares kit, extra lead set, cold-weather jacket), share your aircraft type, preferred voltage, target peak current, and usage profile. We’ll respond with a tailored quotation, delivery timeline, and recommended configuration for India-wide deployment.



What’s Included

  • Pre-tested Portable Engine Starting Trolley with chosen battery chemistry
  • Aircraft start lead set and AC charge cable
  • Operator’s manual, functional test report, and recommended spares list
  • Commissioning support and training (on request)


Why Choose Jetsys Defence for Portable Engine Starting Trolley

  • Reliable High-Current Power for Safe Starts

    Delivers stable, high-amperage output supporting APU-less starts, cold-weather operations, and repeated cycles without voltage drop or system strain.

  • Aircraft-Grade Electrical Protection

    Surge suppressors, reverse-polarity protection, thermal cut-outs, and short-circuit safety protect sensitive avionics and starter motors.

  • Rugged, Flight-Line Ready Construction

    Weather-sealed enclosure, heavy-duty wheels, corrosion-proof hardware, and vibration-resistant cabling for reliable performance on runways, hangars, and remote airstrips.

  • Fast Recharge & Long Service Life

    Deep-cycle batteries, efficient chargers, and smart balancing electronics ensure quick recharge and long battery health.

  • Simple, User-Friendly Operation

    Clear indicator lamps, battery status meters, emergency stop, and ergonomic connectors enable ground crews to operate safely with minimal training.

  • Custom Configurations for Any Fleet

    Offered in 12V, 24V, 28.5V, and multi-output versions with optional jumper cables, NATO connectors, and protective covers for rotary and fixed-wing fleets.

  • Proven for Civil & Military Platforms

    Supports helicopters, UAVs, trainers, business jets, and transport aircraft for on-stand, hangar, and remote-field starts.
