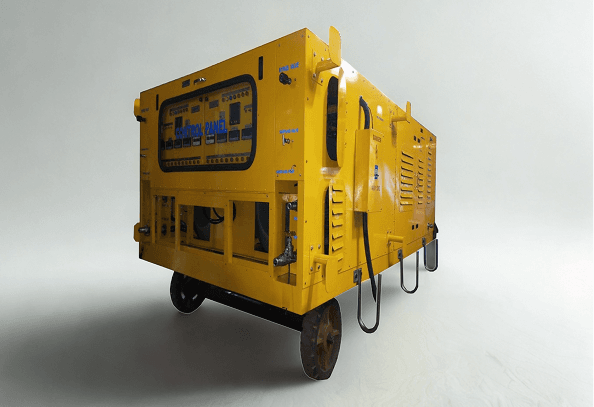

Hydraullic Servicing Trolley – Aviation-Grade Ground Support by Jetsys Defence
The Hydraullic Servicing Trolley from Jetsys Defence delivers clean, stable, high-pressure hydraulic power for aircraft maintenance, testing, and flushing. Designed for fighter jets, transport aircraft, and helicopters, it supports continuous servicing, precise flow/pressure control, and rapid de-aeration—optimised for MROs, depots, and flight-line operations.
Key Features of Hydraullic Servicing Trolley
Dual-Circuit Performance
Two independent supply/return lines allow parallel operations such as actuator cycling, reservoir top-up, and system flushing — all without cross-contamination.Precision Control
Panel-mounted regulators and relief valves provide stepless pressure and flow control for platform-specific servicing procedures.Clean & Dry Fluid Delivery
High-efficiency filtration down to 3 μm, with optional water/air removal stages and dedicated sampling points for on-condition maintenance.
Robust Mobility
Towable chassis with leaf-spring suspension, all-terrain tires, and Ackerman steering enables safe maneuvering across hangars, aprons, and uneven tarmac.Operator-Centric Design
Large analog/digital indicators (pressure, return, boost, temperature, flow), emergency stop, guarded selectors, and clear line IDs for error-free operation.
Technical Specifications of Hydraulic Servicing Trolley
Representative configuration. We tailor each Hydraulic Servicing Trolley to your fleet, fluids, and environmental envelope.
| Parameter | Specification |
|---|---|
| Operating Medium | Mineral-based hydraulic oils (e.g., OM-15, DTD-585, MIL-H-5606) |
| Number of Systems | Dual (System-I & System-II), independent supply & return |
| Rated Flow | 100 LPM per system (typical); higher flows on request |
| Operating Pressure | Up to 300 bar (4350 psi) standard; higher-pressure options available |
| Filtration | Pressure-line filtration to 3 μm; offline filtration/conditioning optional |
| De-aeration | Vacuum de-gassing (~200 mbar abs) for rapid air/moisture removal |
| Compressed Air | Integrated utility air up to 7 bar (optional) |
| Reservoir | Stainless steel SS304/SS304L, typical 140 L total with level control |
| Hoses | 2× pressure (1¼″, 20 m), 2× return (1¼″, 20 m), aux pressure (¼″, 20 m) — configurable lengths |
| Instrumentation | Delivery/return/boost pressures, dual flow meters, reservoir temp, hour meter, alarms |
| Power Source | Diesel engine or electric motor drive; 24 VDC control circuitry |
| Mobility | Towable chassis, 10 km/h max towing speed, front/rear leaf-spring suspension |
| Dimensions (typical) | ~ 3400 × 1500 × 1690 mm (L×W×H); footprint varies by capacity |
| Operating Temperature | −5 °C to +50 °C (extended ranges available) |
| Safety | E-stop, guarded selectors, over-pressure/under-pressure protection, interlocks |
| Documentation | Test certificates, FAT report, P&ID, operating & maintenance manual |
Applications of Hydraulic Servicing Trolley
Flight-Line & Hangar Maintenance
Landing gear and brake actuation, flap/spoiler cycling, reservoir top-up, and contamination control.MRO & Production Test
System flushing, pressure/flow proving, component testing, and acceptance procedures.
Depot & Defence Bases
High-duty cycles, dual-aircraft support, and field-deployable servicing in demanding climates.
Benefits for Your Operation
Improved Reliability
Clean, de-aerated fluid extends seal and servo life across aircraft hydraulic systems.Faster Turnarounds
Dual circuits and quick-connect hose sets reduce hangar and bay time.
Lower Lifecycle Cost
Condition-based fluid care minimizes oil waste and component wear.Operator Safety
Clear status displays, guarded controls, and built-in protections reduce risk during servicing.
Hydraulic Servicing Trolley Maintenance
Daily Checks
Visual leak inspection, hose/quick-coupler scan, reservoir level, and cleanliness check.Weekly Tasks
Filter differential check, vacuum pump test, and instrument verification.Monthly / Quarterly
Oil sampling & analysis, calibration of transducers/flow meters, and full functional test.
Annual Tasks
Hose proof test, relief settings verification, and a comprehensive FAT-style inspection.Support & Spares
Jetsys Defence supplies filter kits, hose sets, spare parts, and calibration support to streamline maintenance.
Looking for a Hydraulic Servicing Trolley Near Me?
We support quick deployment and local service through regional stocking and commissioning teams. Share your location and fleet type, and our engineers will schedule a survey to match the trolley configuration to your exact procedures.
Configuration Options
Powertrain & Controls
Diesel or electric prime mover, cold-start package, low-noise enclosure, analog panel or touchscreen HMI with trends, counters, and alarm history.Fluid Care
Offline kidney-loop conditioning, water removal, air/gas stripping, and cleanliness targets to NAS/ISO codes.
Environmental & Safety
Stainless hardware, anti-corrosion coatings, spark-arrestor, fire suppression, and arctic/tropic kits.
What’s Included
- Fully assembled Hydraulic Servicing Trolley with dual circuits
- Commissioning support and operator training
- P&ID, wiring diagram, FAT report, Certificate of Conformance (CoC)
- Recommended spare parts list and service guidance
Why Choose Jetsys Defence for Hydraulic Servicing Trolley
Aerospace-Grade Filtration & Cleanliness
High-efficiency filters, water separators, and fine-mesh strainers remove moisture and particulate contamination—protecting hydraulic pumps, actuators, and valves from wear or failure.Precise Pressure & Flow Control
Calibrated regulators, dual pressure gauges, relief valves, and smooth flow circuits ensure accurate charging, flushing, and topping-up of aircraft hydraulic systems.Built for Harsh Flight-Line Conditions
Heavy-duty frames, corrosion-protected tanks, chemical-resistant seals, and vibration-proof fittings deliver reliable operation in extreme temperatures, rain, dust, and coastal environments.Zero-Leak, Safety-First Design
High burst-pressure hoses, leak-proof couplings, and quick shut-off features prevent spillage and system shock during servicing.
Fast Maintenance & Easy Operation
Labeled controls, ergonomic hose reels, large filler openings, and quick access for filter replacements streamline routine work and fault checks.Customisable for Any Fleet
Available in various reservoir capacities with single/dual circuits, flushing capability, digital flow monitoring, and NATO-standard connectors to match aircraft requirements.Proven for Civil & Military Aircraft
Suitable for landing gear, brake systems, power-pack hydraulics, and flight control circuits on helicopters, trainers, transports, and commercial aircraft.
