Bomb Loading Trolley – Jetsys Defence Aviation Equipment

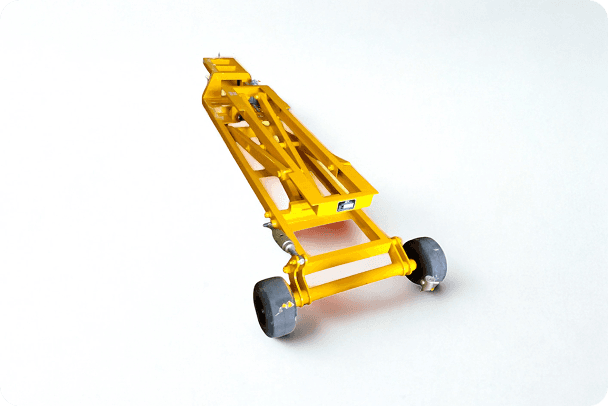

The Bomb Loading Trolley (also searched as Bomb Loading Trolley) by Jetsys Defence is a rugged, precision-lift ground support solution for safe, efficient handling of aircraft bombs, missiles, and stores. Engineered for true vertical lift and fine positioning at the pylon/hardpoint, it shortens turnaround time while maximizing crew safety and reliability.
Target queries covered: Bomb Loading Trolley manufacturer, Bomb Loading Trolley price, Bomb Loading Trolley for aircraft.
Optional Accessories
Handling & Interface
Bomb rollers (6″ / 10″), tie-down straps, load binders
Fork adapters, lift-arm extensions, lug beams, tilt cradles
Tow ring adapter, missile/munitions loading adapters
Power & Control
Electric or diesel hydraulic power packs
Radio remote (for powered variants)
Enhanced micro-positioning valves
Key Benefits of Bomb Loading Trolley
- Safety First:Positive mechanical/hydraulic locking and drift-free elevation reduce mishaps.
- Faster Turnarounds:Accurate alignment speeds up uploading/downloading of stores.
- Low Ownership Cost:Fewer wear parts and easy service access.
- Mission-Ready:Works in tight bays, on uneven aprons, and in expeditionary conditions.
Bomb Loading Trolley Manufacturer
As a leading Bomb Loading Trolley manufacturer in India, Jetsys Defence designs and fabricates aviation-grade units with full technical documentation, operator training, and long-term spares support including bush kits, seal kits, hoses, valves, rollers, tie-downs, and adapter sets.
Bomb Loading Trolley Price (India)
The Bomb Loading Trolley price depends on configuration and mission requirements:
- Lifting capacity & maximum height
- Powered vs manual pack (diesel / electric / hand-pump)
- Adapter sets (bomb rollers, tie-downs, pylon cradles)
- Paint, marking & documentation packages
Request a quotation with aircraft type, store weights, interface height, and preferred power optionto receive an exact price tailored to your fleet and operating environment.
Technical Specifications
Note: Specs can be customized to your squadron/type certificate needs. Values below are representative.
| Parameter | Specification |
|---|---|
| Lifting Capacity | 700–1,000 kg (configurable) |
| Lift Height (Min–Max) | 300–1,900 mm (options up to ~2,300 mm) |
| Lift Geometry | Dual scissor, true vertical lift |
| Control | Hand pump + proportional valve / optional powered pack |
| Hydraulic Safety | Pilot check valves, relief valve, flow control |
| Platform Adjustment | Fine height control; optional tilt/roll adapters |
| Overall Dimensions (L×W×H, stowed) | ~2,700 × 980 × 600 mm (model dependent) |
| Ground Clearance | ~90 mm |
| Wheel Type | Solid rubber, ~300 × 70 mm |
| Frame | High-strength steel, plate-sectioned |
| Finish | Corrosion-resistant industrial coating |
| Reservoir Capacity | ~3 L (model dependent) |
| Operating Temp | –20 °C to +55 °C (typical aviation range) |
| Noise | ≤85 dBA at 1 m (typical for powered versions) |
| Net Weight | ~300 kg (varies by configuration) |
Applications of Bomb Loading Trolley
Aircraft Armament Loading
Bombs, missiles, pylons, pods, and fuel tanks precisely aligned to aircraft interfaces for fast, safe uploading/downloading.Ordnance Maintenance
Holds stores at any height for fuse changes, inspections, and round verification during servicing.
Depot & Flight-Line Handling
Compact footprint for confined bays and aisles, with manual backup operation for power-down scenarios and field conditions.
Key Advantages of Bomb Loading Trolley
True Vertical, Drift-Free Lift
Stacked scissor architecture ensures perfect vertical motion with zero side drift—no alignment loss, no shim adjustments.Micro-Positioning & Safety Locks
Flow-controlled hydraulics with pilot-operated check valves provide smooth millimetric movement and secure holding at any height.
Built for Airbase Duty
High-strength steel frame, solid wheels, low stowed height, and compact footprint for hangars, shelters, and tight aprons.Low Maintenance Lifecycle
Accessible grease points, simplified hydraulics, corrosion-resistant coatings—engineered to reduce downtime and service cost.
Why Choose Jetsys Defence for Bomb Loading Trolley
Designed for Safe & Precise Ordnance Handling
Engineered for controlled lifting, positioning, and loading of bombs, missiles, and heavy stores—reducing human risk and improving operational safety.Heavy-Duty Structure, Aerospace-Grade Build
High-strength steel frames, corrosion-resistant coatings, and vibration-damped wheels deliver rugged field performance and long service life.Smooth Lift & Positioning Mechanism
Manual or hydraulic lifts with precise alignment guides, safety locks, and stable wheelbase ensure error-free loading to pylons, rails, and hardpoints.
Engineered for Military Flight-Line Operations
Reliable on concrete, asphalt, and uneven aprons—ideal for fighters, trainers, UAVs, and transport aircraft in harsh weather and continuous use.Operator Safety & Ground Crew Protection
Anti-slip platforms, mechanical locks, restraints, and overload protection prevent accidental drop, slippage, or trolley drift.Custom Load Capacities & Configurations
Available with different load ratings, cradle types, wheel sets, track widths, and lift strokes for bombs, guided munitions, missiles, and pods.Reduced Import Dependence, Faster Support
Designed and serviced in India—faster delivery, local spare parts, and rapid maintenance support.Trusted by Defence Users & MRO Units
Deployed by airbases, weapon loading teams, and aviation manufacturers for proven ground-operation reliability.
